AIR6SC-750
Description

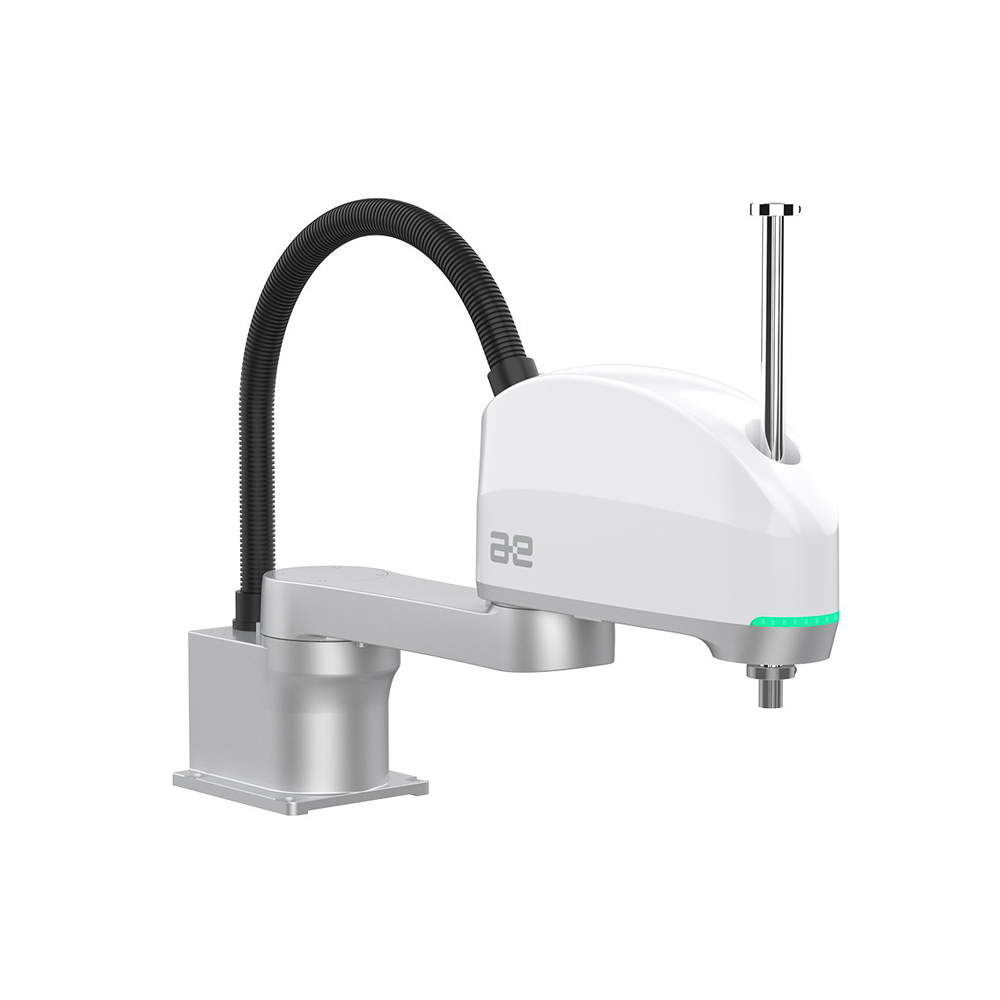

Peitian AIR6SC-750: Small and Agile 4-Axis Chinese SCARA Robot | 6 kg Payload | 750 mm Reach
The Peitian AIR6SC-750 is a small, agile 4-axis Chinese SCARA robot designed for high-speed, precise pick-and-place and rapid handling applications where a lightweight body and minimal footprint are the defining requirements. With a 6 kg maximum payload, a 750 mm reach, and an outstanding position repeatability of ±0.015 mm on axes 1+2, it delivers exceptional accuracy and responsiveness in a package weighing just 21.2 kg — making it one of the most compact and nimble Chinese SCARA robots available in Europe.
The AIR6SC-750 is built around four core principles: small size, agility, high speed, and high precision. With a combined axes 1+2 speed of 8,355 mm/s and an axis 4 rotational speed of 2,300°/s — the fastest in the Peitian SCARA family — it is purpose-built for short cycle times and rapid part transfer in dense, high-throughput automation cells. Despite its compact dimensions, it offers a generous 750 mm reach relative to its body size, maximising the usable work envelope without increasing the installation footprint.
The integrated dressing design routes all cables and pneumatic lines internally through the arm structure, eliminating external corrugated hoses that would otherwise interfere with tooling or surrounding equipment. The small arm interface provides 20 user IO channels and 2 pneumatic ports (φ6) directly at the end effector, simplifying gripper integration and keeping the cell layout clean. The Z-stroke is available in two variants — 200 and 300 mm — covering the most common vertical clearance requirements for compact assembly and handling applications.
Controlled by the ultra-compact Peitian inCube2S-6 controller, the AIR6SC-750 is one of the easiest Chinese robots to deploy and integrate into both new and existing production lines. Floor-mount only, it is optimised for benchtop-level automation, conveyor feeding, and small-component assembly cells. Distributed across Europe exclusively by Peitian Europe, it comes with full local technical support from Italy.
⚙️ Key Features
- Small and Agile — At just 21.2 kg, the lightest and most nimble robot in the entire Peitian SCARA lineup
- High Speed — Combined axes 1+2 speed of 8,355 mm/s; axis 4 at 2,300°/s — the fastest axis 4 of any Peitian SCARA model
- High Precision — Position repeatability of ±0.015 mm on axes 1+2 and ±0.005° on axis 4 for exceptional part placement accuracy
- Small Footprint — Compact body maximises workspace-to-footprint ratio for dense multi-robot cells
- Integrated Dressing — Internal cable and pneumatic routing for clean, interference-free operation
- Ultra-Compact Controller — Compatible with the Peitian inCube2S-6, one of the smallest controllers in the range
🏭 Typical Applications
- Rapid Pick-and-Place — High-throughput handling of small, lightweight components
- Small Component Assembly — Electronics, connectors, precision parts
- Conveyor Feeding & Sorting — Fast, accurate part transfer between lines
- Benchtop Automation — Space-saving integration at workcell or machine level
- Short Cycle Applications — Any process where cycle time is the primary optimisation target
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Model | AIR6SC-750 |
| Axes | 4 |
| Rated Payload | 2 kg |
| Maximum Payload | 6 kg |
| Maximum Reach | 750 mm |
| Robot Weight | 21.2 kg |
| Repeatability (Axis 1+2) | ±0.015 mm |
| Repeatability (Axis 3) | ±0.01 mm |
| Repeatability (Axis 4) | ±0.005° |
| Max. Axis 4 Inertia | 0.12 kg·m² |
| IP Rating | IP20 |
| Mounting | Floor only |
| Z-Stroke Options | 200 / 300 mm |
| Compatible Controller | inCube2S-6 |
| Ambient Temperature | 0 – 40 °C |
| Max. Altitude | 1000 m |
🔄 Axis Working Range & Speed
| Axis | Working Range | Max Speed |
|---|---|---|
| Axis 1 | −134° / +134° | 400°/s |
| Axis 2 | −150° / +150° | 650°/s |
| Axis 1+2 Combined | — | 8,355 mm/s |
| Axis 3 (Z) | 200 / 300 mm | 1,100 mm/s |
| Axis 4 | −360° / +360° | 2,300°/s |
🔍 Where Does the AIR6SC-750 Fit in the Peitian SCARA Family?
| AIR6SC-750 | AIR12SC-600 | AIR12SC-820 | |
|---|---|---|---|
| Payload | 6 kg | 12 kg | 12 kg |
| Reach | 750 mm | 600 mm | 825 mm |
| Robot Weight | 21.2 kg | 42 kg | 48 kg |
| Axis 4 Speed | 2,300°/s | 1,600°/s | 1,600°/s |
| Best for | Ultra-fast light handling | Compact heavy cells | Mid-range heavy cells |
🌍 Why Choose a Peitian Chinese Robot?
Peitian robots represent the new generation of Chinese industrial robots — advanced engineering, competitive pricing, and full European after-sales support. As the official European distributor, Peitian Europe provides installation assistance, spare parts, and technical training directly from Italy.
