AIR50-2260
Description
Product description – AIR50-2260

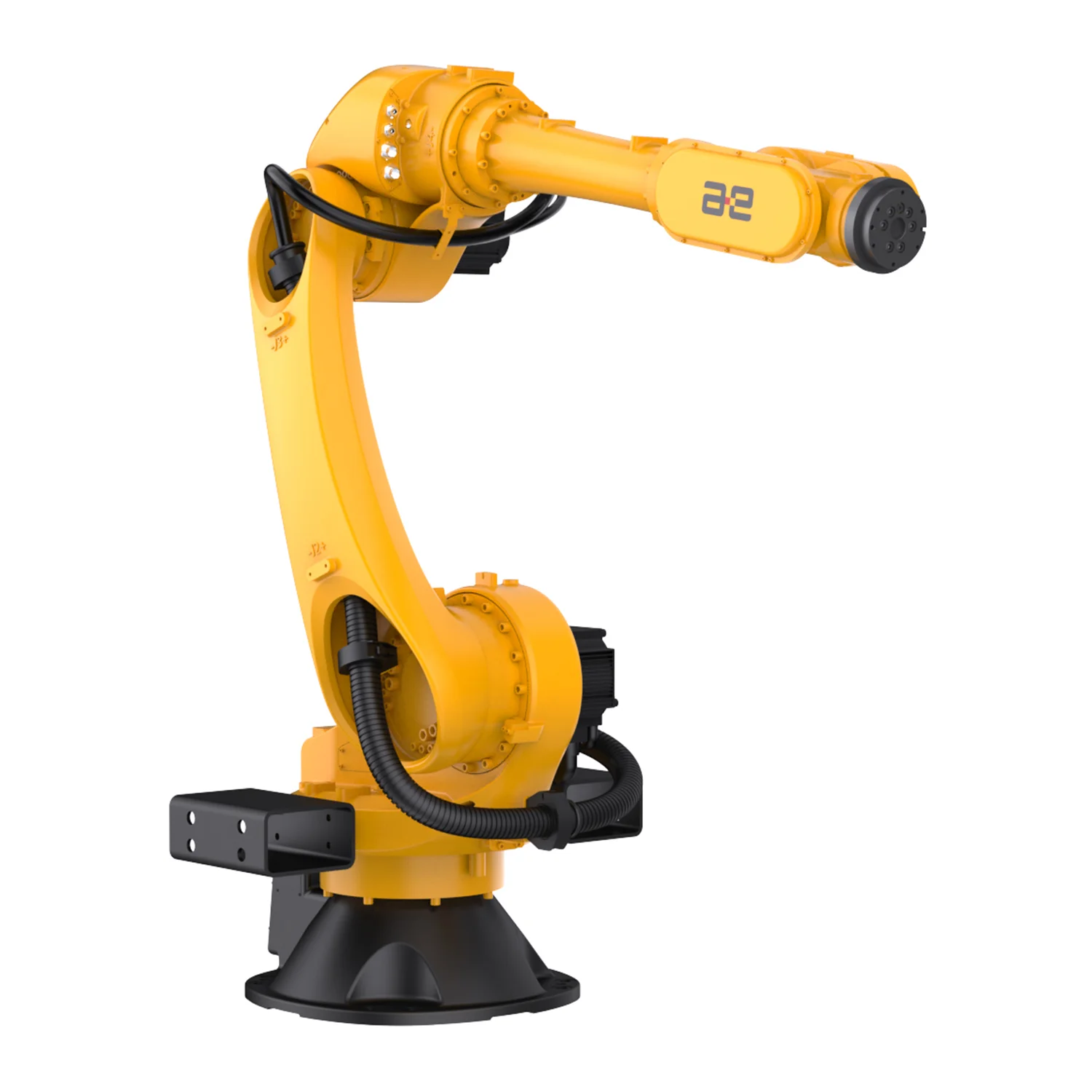

The Peitian AIR50-2260 is a 6-axis Chinese industrial robot with a 50 kg payload and a 2255 mm reach, delivering high speed, high precision and high stability for medium-payload automation. Primarily suited for sheet metal, injection moulding, ceramics and building materials applications including handling, palletizing and dispensing.
With wrist IP67 protection and availability in both floor and ceiling mounting configurations, it integrates into a wide range of production environments. Built-in air tubes and IO wiring harness reduce interference with peripheral equipment.
Compatible with the ARC5-280 controller.
Key features:
- 6 axes | 50 kg payload | 2255 mm reach
- Position repeatability: ±0.06mm
- Axis 2 speed: 175°/s | Axis 6 speed: 465°/s
- Axis 4 range: ±350°
- Protection: IP54 (Wrist: IP67)
- Mounting: floor / ceiling
- High speed | High precision | High stability
- Built-in air tubes and IO wiring harness
- Operating temperature: 0–45°C
