AIR80-2260
Description
Product description – AIR80-2260

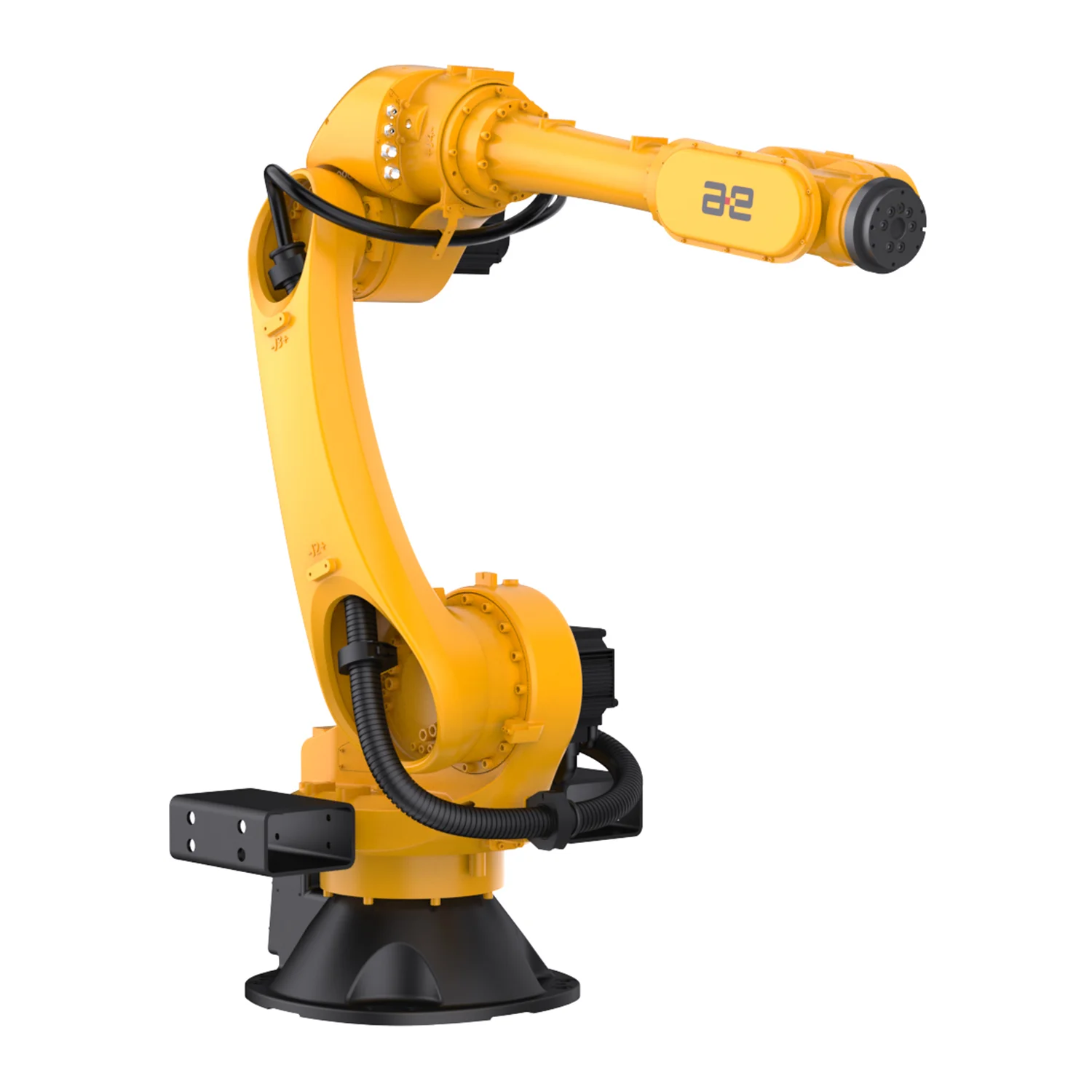

The Peitian AIR80-2260 is a 6-axis Chinese industrial robot with an 80 kg payload and a 2255 mm reach, combining high speed, high precision and high stability for demanding medium-payload automation. Primarily suited for sheet metal, injection moulding, ceramics and building materials applications including handling, palletizing and dispensing.
With wrist IP67 protection and availability in both floor and ceiling mounting configurations, it adapts to a wide range of installation environments. High-speed, high-overload motors deliver smooth operation with minimal torque fluctuation. Built-in air tubes and IO wiring harness reduce interference with peripheral equipment.
Compatible with the ARC5-280 controller.
Key features:
- 6 axes | 80 kg payload | 2255 mm reach
- Position repeatability: ±0.06mm
- Axis 6 speed: 465°/s | Axis 4 range: ±350°
- Protection: IP54 (Wrist: IP67)
- Mounting: floor / ceiling
- High speed | High precision | High stability
- Built-in air tubes and IO wiring harness
- Operating temperature: 0–45°C
