AIR12SC-600
Description

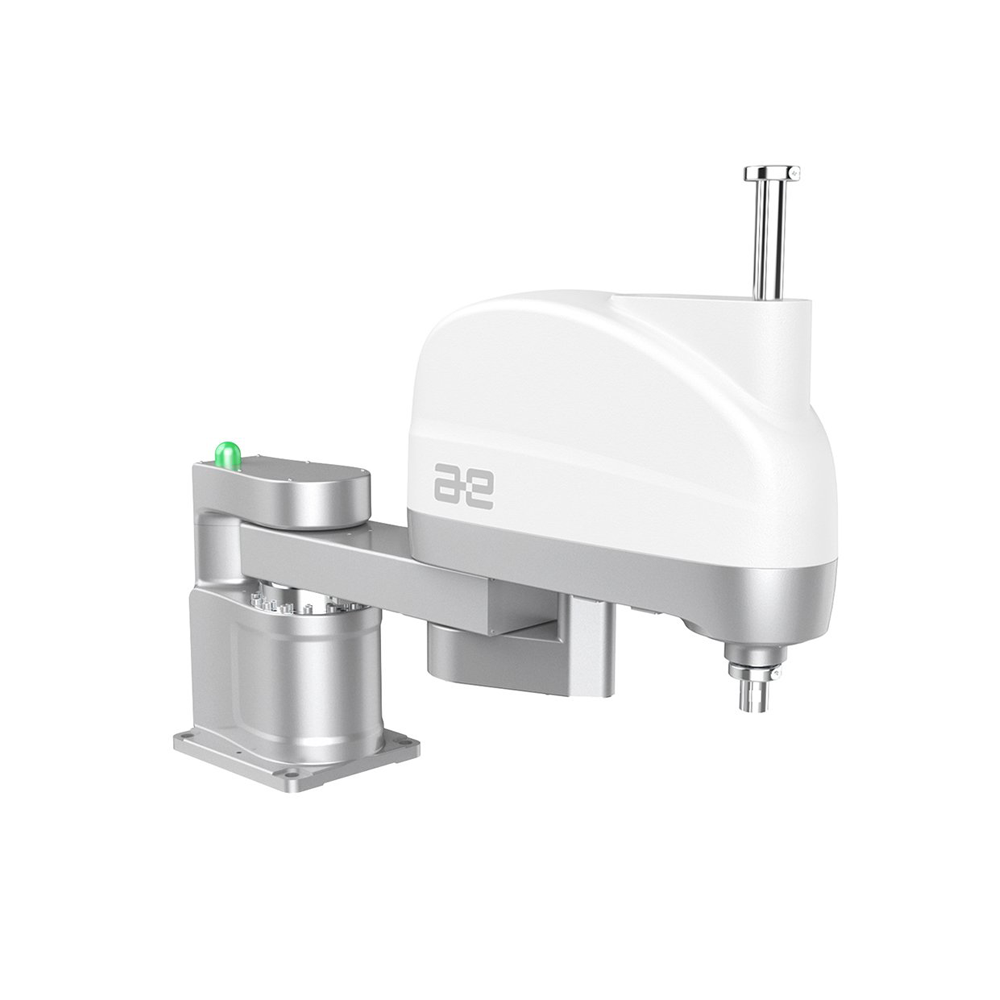

Peitian AIR12SC-600: High-Speed 4-Axis Chinese SCARA Robot | 12 kg Payload | 600 mm Reach
The Peitian AIR12SC-600 is a high-speed, high-rigidity 4-axis Chinese SCARA robot engineered for precise, fast-cycle assembly, handling and pick-and-place automation in the smallest and most space-constrained production cells. With a 12 kg maximum payload, a 600 mm reach, and a position repeatability of ±0.02 mm on axes 1+2, it is the most compact model in the Peitian AIR12SC family — the natural choice when floor space is at an absolute premium and cycle speed in a tight work envelope is the decisive factor.
Weighing just 42 kg, the AIR12SC-600 is the lightest Chinese SCARA robot in the entire Peitian range, making it exceptionally easy to install, reposition and integrate into existing production lines or multi-robot cells. Despite its minimal footprint, it maintains the same 0.45 kg·m² maximum axis 4 inertia and 1,600°/s rotational speed as its larger siblings — ensuring it can handle off-centre tooling, asymmetric end effectors and irregular part geometries without compromising accuracy or throughput.
The internal hollow wiring design eliminates all external corrugated conduits from the arm structure, keeping the robot cell clean and protecting cables and pneumatic lines from wear during continuous high-cycle operation. The integrated small arm interface delivers 20 user IO channels and 4 pneumatic ports (φ6) directly at the end effector mounting point, simplifying gripper and tooling integration without additional cable routing hardware. An optional drip-proof and dust-proof version (IP54) extends the AIR12SC-600’s operating range to environments affected by humidity, dust and oil mist, while the optional ceiling-mount configuration — where the axis 2 range adjusts to −130°/+130° — frees up critical floor space for the most constrained layouts.
The Z-stroke is available in four variants — 200, 300, 400 and 600 mm — allowing precise adaptation to the vertical clearance of each specific application. Controlled by the compact Peitian inCube2S-20 controller, the AIR12SC-600 integrates efficiently into both new and existing production lines. Distributed across Europe exclusively by Peitian Europe, this Chinese SCARA robot is backed by full local technical support from Italy.
⚙️ Key Features
- High Speed & High Rigidity — Combined axes 1+2 speed of 7,600 mm/s and axis 4 speed of 1,600°/s for fast, stable cycle times in ultra-compact cells
- High Inertia Tolerance — Maximum axis 4 inertia of 0.45 kg·m², ideal for large-sized and large-eccentric payload handling
- Lightest in the Peitian SCARA Range — At 42 kg, the easiest model to install, reposition and integrate of all Peitian SCARA robots
- Internal Hollow Wiring — No external cable conduits; 20 IO channels and 4 pneumatic ports integrated at the small arm
- Optional IP54 Protection — Drip-proof and dust-proof version for humid, dusty and oil-mist environments
- Optional Ceiling-Mount — Overhead installation for maximised floor space utilisation
- Four Z-Stroke Options — 200 / 300 / 400 / 600 mm to suit any application height requirement
🏭 Typical Applications
- Assembly & Sub-Assembly — Electronics, small components, consumer goods
- High-Speed Handling — Pick-and-place of parts in ultra-compact, densely packed cells
- Palletising & De-palletising — Stacking and unstacking of small trays, boxes and components
- Loading & Unloading — Machine tending for presses, CNC and injection moulding
- Harsh Environment Automation — Food processing, metalworking, and wet/dusty production lines (IP54 version)
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Model | AIR12SC-600 |
| Axes | 4 |
| Rated Payload | 6 kg |
| Maximum Payload | 12 kg |
| Maximum Reach | 600 mm |
| Robot Weight | 42 kg |
| Repeatability (Axis 1+2) | ±0.02 mm |
| Repeatability (Axis 3) | ±0.01 mm |
| Repeatability (Axis 4) | ±0.01° |
| Max. Axis 4 Inertia | 0.45 kg·m² |
| IP Rating | IP30 / IP54 (optional) |
| Mounting | Floor / Ceiling |
| Z-Stroke Options | 200 / 300 / 400 / 600 mm |
| Compatible Controller | inCube2S-20 |
| Ambient Temperature | 0 – 40 °C |
| Max. Altitude | 1000 m |
🔄 Axis Working Range & Speed
| Axis | Working Range | Max Speed |
|---|---|---|
| Axis 1 | −135° / +135° | — |
| Axis 2 | −135° / +135° (−130°/+130° ceiling) | — |
| Axis 1+2 Combined | — | 7,600 mm/s |
| Axis 3 (Z) | 200/300/400/600 mm | 1,666 mm/s |
| Axis 4 | −360° / +360° | 1,600°/s |
🔍 AIR12SC SCARA Family — Find Your Reach
| AIR12SC-600 | AIR12SC-700 | AIR12SC-820 | AIR12SC-1000 | |
|---|---|---|---|---|
| Reach | 600 mm | 700 mm | 825 mm | 1000 mm |
| Robot Weight | 42 kg | 45 kg | 48 kg | 54 kg |
| Axis 1+2 Speed | 7,600 mm/s | 8,600 mm/s | 10,100 mm/s | 11,200 mm/s |
| Best for | Ultra-compact cells | Compact cells | Mid-range cells | Wide work envelopes |
🌍 Why Choose a Peitian Chinese Robot?
Peitian robots represent the new generation of Chinese industrial robots — advanced engineering, competitive pricing, and full European after-sales support. As the official European distributor, Peitian Europe provides installation assistance, spare parts, and technical training directly from Italy.
Browse the complete range of Chinese SCARA robots in our SCARA category or explore the full Chinese Robots lineup.
