AIR130-3100
Description
Product description – AIR130-3100

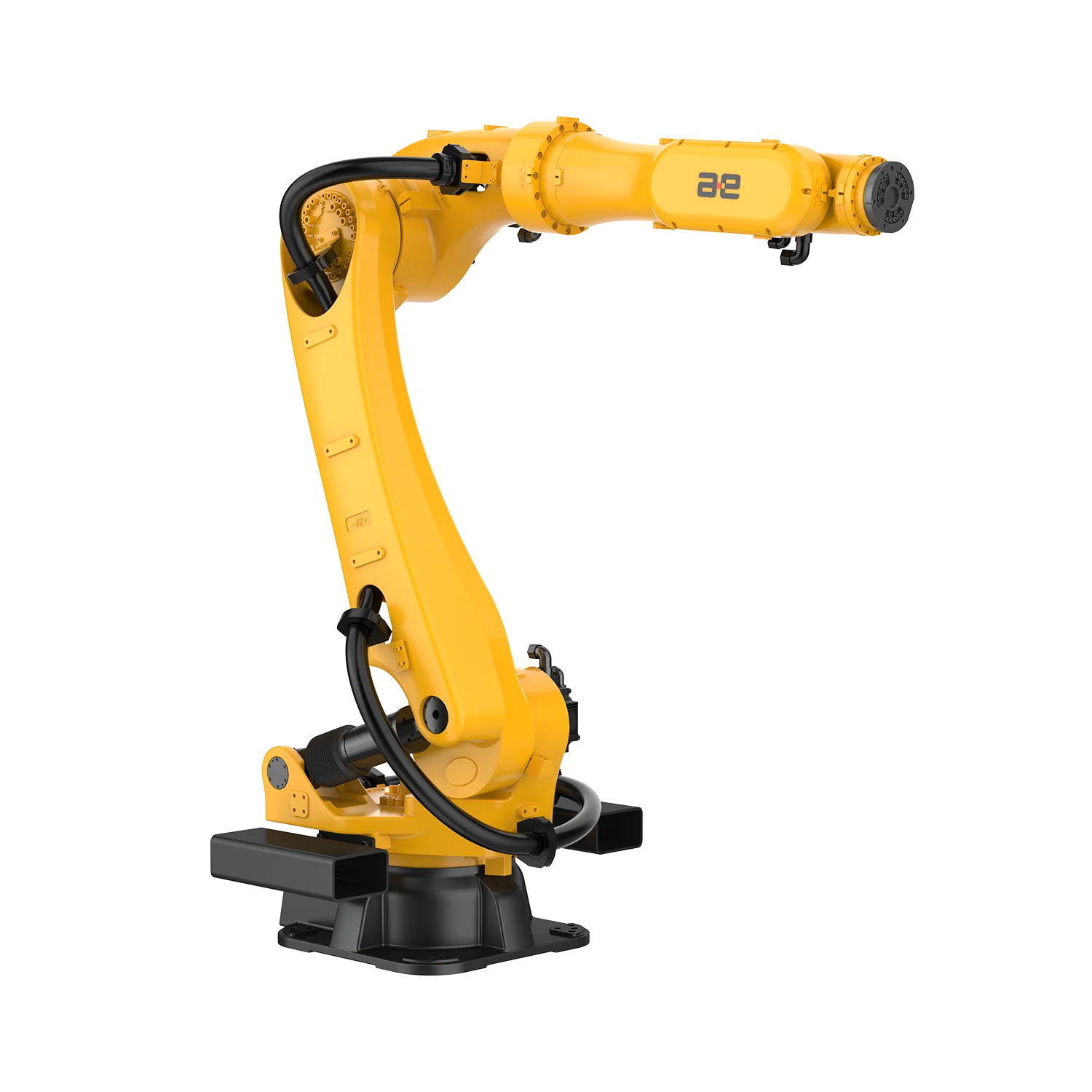

The Peitian AIR130-3100 is a 6-axis Chinese heavy-duty industrial robot with a 130 kg payload and a 3104 mm reach, offering an exceptionally wide working envelope for applications requiring long reach with substantial load capacity. The reduced payload compared to higher-class models translates directly into faster wrist speeds, making it ideal for palletizing, material handling and assembly tasks over large work areas where cycle time matters.
With an axis 4 wrist speed of 225°/s — the highest in the Peitian large payload range at this reach — it delivers superior responsiveness on complex multi-axis trajectories. Built-in air tubes and IO wiring harness reduce interference with peripheral equipment.
Compatible with the ARC5-280 controller.
Key features:
- 6 axes | 130 kg payload | 3104 mm reach
- Position repeatability: ±0.06mm
- Axis 4 speed: 225°/s | Axis 6 speed: 300°/s
- Weight: 1245 kg
- Protection: IP54 (Wrist: IP65)
- Mounting: floor only
- High inertia | High speed | High stability
- Built-in air tubes and IO wiring harness
- Operating temperature: 0–45°C
