AIR170-2700
Description
Product description – AIR170-2700

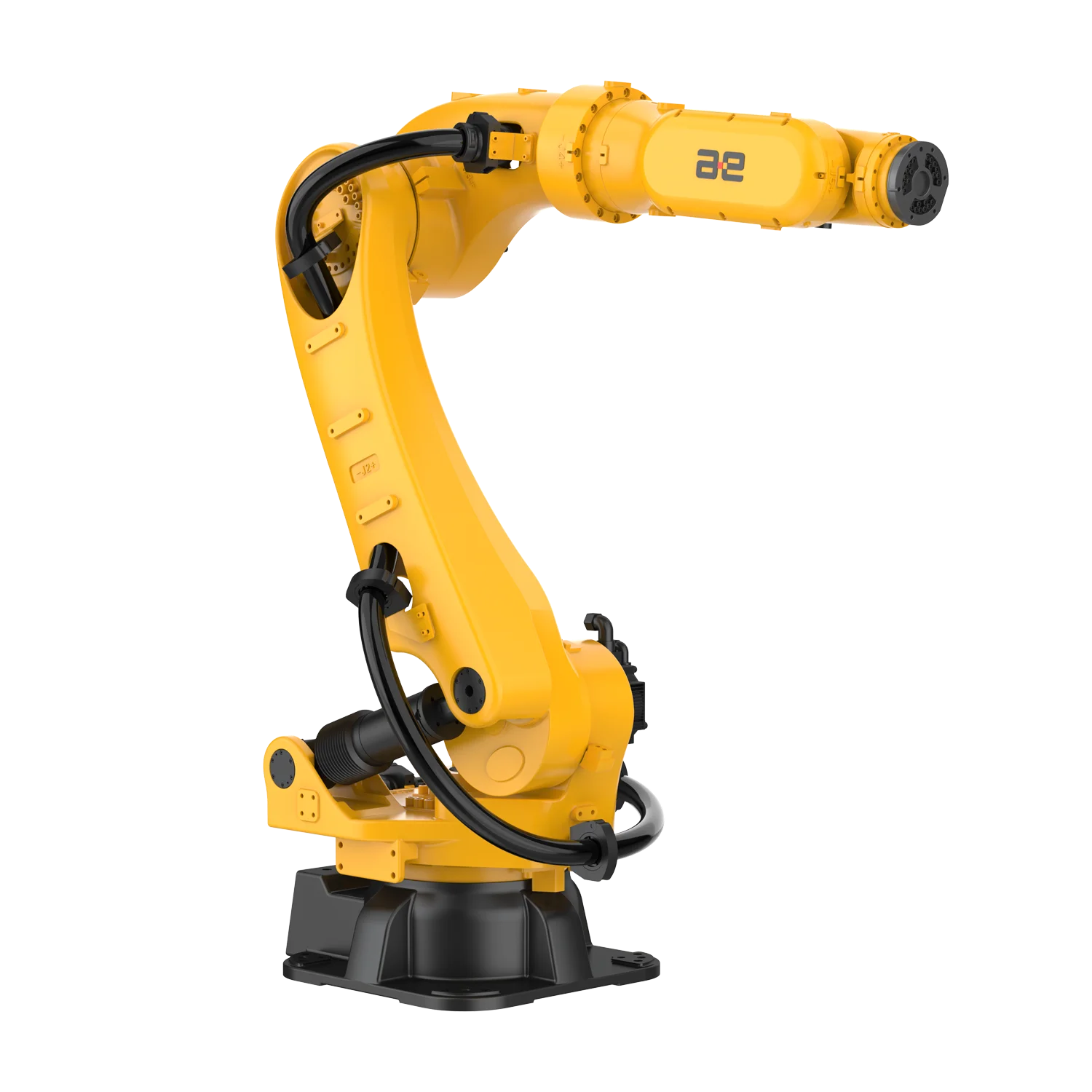

The Peitian AIR170-2700 is a 6-axis Chinese heavy-duty industrial robot with a 170 kg payload and a 2707 mm reach, combining high payload capacity with excellent axis speeds for fast and reliable heavy-duty automation. The ideal choice when a compact working envelope is preferred over maximum reach without sacrificing load capacity.
Compared to the AIR170-3100, the shorter arm delivers a notably faster axis 3 speed of 125°/s, making it more responsive on tight trajectories and repetitive cycles. Built-in air tubes and IO wiring harness reduce interference with peripheral equipment.
Compatible with the ARC5-280 controller.
Key features:
- 6 axes | 170 kg payload | 2707 mm reach
- Position repeatability: ±0.06mm
- Axis 3 speed: 125°/s | Axis 6 speed: 300°/s
- Weight: 1220 kg
- Protection: IP54 (Wrist: IP65)
- Mounting: floor only
- High inertia | High speed | High stability
- Built-in air tubes and IO wiring harness
- Operating temperature: 0–45°C
