AIR220-2700
Description
Product description – AIR220-2700

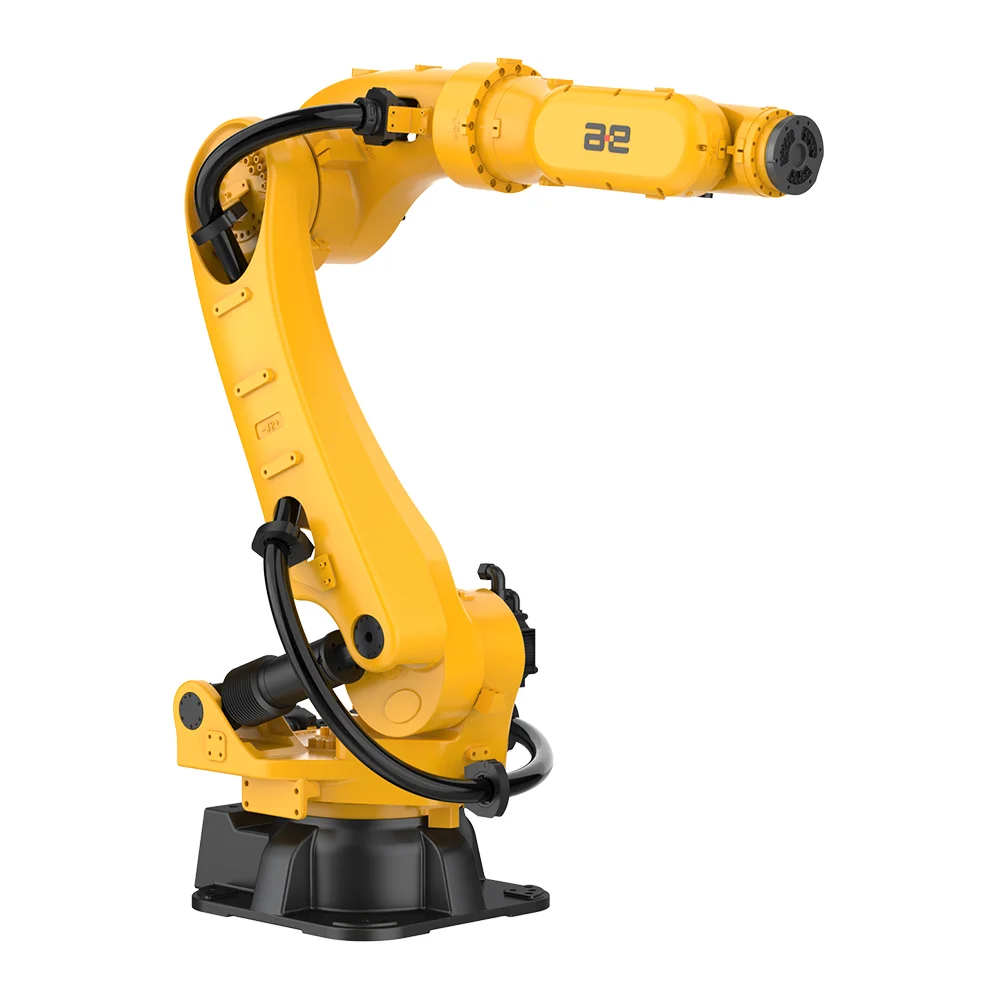

The Peitian AIR220-2700 is a 6-axis Chinese heavy-duty industrial robot with a 220 kg payload and a 2707 mm reach, combining high speed with high inertia capacity for demanding material handling, palletizing and heavy assembly applications.
Compared to higher-payload models, the AIR220-2700 offers increased axis speed on axes 2 and 3 (114°/s), making it the ideal choice when both high payload capacity and faster cycle times are required. Built-in air tubes and IO wiring harness reduce interference with peripheral equipment.
Compatible with the ARC5-280 controller.
Key features:
- 6 axes | 220 kg payload | 2707 mm reach
- Position repeatability: ±0.06mm
- Axis 2 & 3 speed: 114°/s
- Protection: IP54 (Wrist: IP65)
- Mounting: floor only
- High inertia | High speed | High stability
- Built-in air tubes and IO wiring harness
- Operating temperature: 0–45°C
