Product description – InCube22

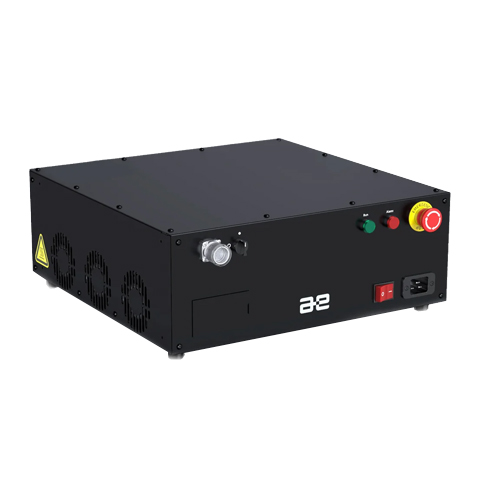

The Peitian InCube22 is a high-power robot controller for Chinese industrial robots, sharing the compact InCube form factor with increased output capacity. Powered by Peitian’s ARCS software, it ensures precise trajectory control and faster production cycles.

Key specifications:

• Dimensions: 420 × 151 × 455 mm
• Weight: 20 kg
• Protection: IP40
• Power supply: Single-phase 220VAC
• Max. input power: 3.5 KVA
• I/O: 26 User DI (PNP & NPN), 26 User DO (NPN), 18 Safety IO
• Operating temperature: 0–45°C
