AIR10-1700-HW (Hollow Wrist)
Description

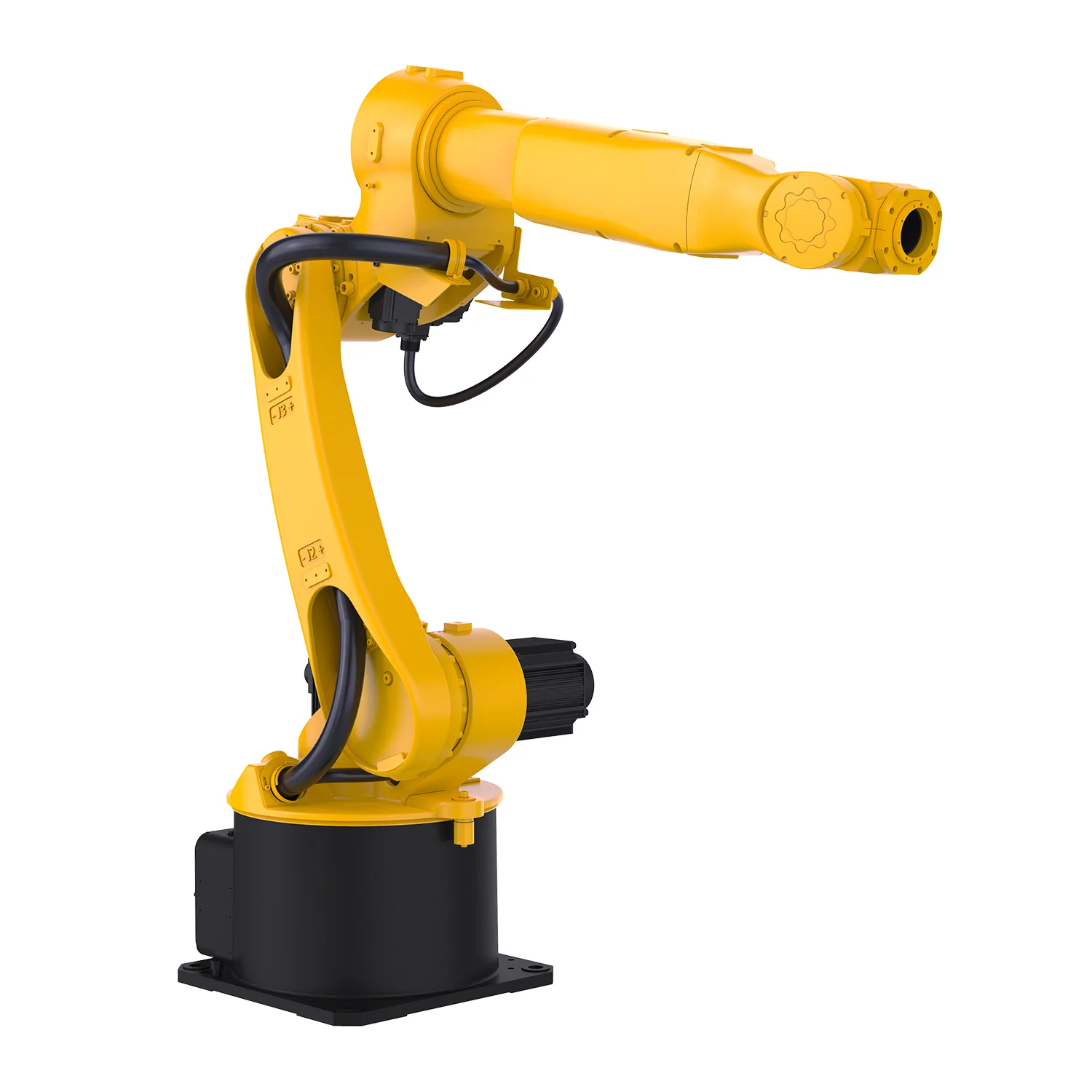

Peitian AIR10-1700-HW: The Compact Hollow-Wrist Chinese Robot for Precision Welding
The Peitian AIR10-1700-HW is a professional 6-axis articulated Chinese robot that brings together a lightweight 10 kg payload, a generous 1708 mm reach, and a hollow wrist arm architecture — delivering exceptional performance for welding and automation tasks in tight, complex production cells.
The “HW” — Hollow Wrist — design routes all cables and welding hoses internally through the arm structure, eliminating external cable bundles that interfere with fixtures, wear prematurely, or restrict motion in continuous arc welding cycles. The result is a cleaner, more reliable robot cell with lower maintenance costs and greater uptime.
Sitting alongside the AIR12-2000-HW and AIR25-1840-HW in the Peitian hollow wrist family, the AIR10-1700-HW is the most compact option — the natural choice when cell space is at a premium and payload requirements are moderate. Distributed across Europe by Peitian Europe, it combines the performance of a leading Chinese industrial robot with full local technical support from Italy.
⚙️ Key Features
- High Speed — Axis 6 reaches up to 720°/s; axis 5 at 450°/s for fast, fluid motion along complex weld seams
- High Precision — Position repeatability of ±0.06 mm for consistent weld quality and accurate part placement
- High Stability — Rigid arm structure maintains accuracy under load at full reach
- Compact Hollow Arm — Internal cable and hose routing for cleaner cells, less wear, and reduced downtime
- Full IP67 Wrist Protection — Body IP54, wrist IP67 — resistant to weld spatter, dust and liquid ingress
- Smallest Footprint in the HW Family — At 193 kg, the lightest hollow wrist model in the Peitian range
- Versatile Mounting — Floor, wall, or ceiling installation
🏭 Typical Applications
The AIR10-1700-HW is purpose-built for welding and automation across a wide range of industries:
- Arc Welding — Hardware tools, metal furniture, automotive maintenance, shipbuilding, pipe engineering, construction structures
- General Machinery — Structural welding, sub-assembly fabrication
- Material Handling — Pick-and-place, palletising, loading & unloading
- Narrow-Space Operations — Where a lighter, more compact hollow wrist robot outperforms larger models
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Model | AIR10-1700-HW |
| Axes | 6 |
| Payload | 10 kg |
| Maximum Reach | 1708 mm |
| Robot Weight | 193 kg |
| Position Repeatability | ±0.06 mm |
| IP Rating (Body / Wrist) | IP54 / IP67 |
| Mounting | Floor / Wall / Ceiling |
| Compatible Controller | inCube20 / ARC5-12 |
| Ambient Temperature | 0 – 45 °C |
| Max Altitude | 1000 m (derated up to 4000 m) |
🔄 Axis Working Range & Speed
| Axis | Working Range | Max Speed |
|---|---|---|
| Axis 1 – Rotation | −170° / +170° | 210°/s |
| Axis 2 – Arm | −85° / +150° | 170°/s |
| Axis 3 – Arm | −100° / +170° | 220°/s |
| Axis 4 – Wrist | −155° / +155° | 430°/s |
| Axis 5 – Bend | −120° / +120° | 450°/s |
| Axis 6 – Turn | −360° / +360° | 720°/s |
🔌 Controller Compatibility
The AIR10-1700-HW is compatible with the Peitian inCube20 and ARC5-12 controllers, available separately in our Controllers category. The ARC5-12 is purpose-optimised for arc welding, with dedicated welding parameter management, torch calibration utilities, and native compatibility with leading welding power sources.
🔍 Peitian Hollow Wrist Family — Which Model is Right for You?
| AIR10-1700-HW | AIR12-2000-HW | AIR25-1840-HW | |
|---|---|---|---|
| Payload | 10 kg | 12 kg | 25 kg |
| Reach | 1708 mm | 2004.6 mm | 1843 mm |
| Robot Weight | 193 kg | 271 kg | 275 kg |
| Repeatability | ±0.06 mm | ±0.06 mm | ±0.06 mm |
| Best for | Compact cells, light welding | Long-reach welding | Heavy-payload welding & handling |
🌍 Why Choose a Peitian Chinese Robot?
Peitian robots represent the new generation of Chinese industrial robots — advanced engineering, competitive pricing, and full European after-sales support. As the official European distributor, Peitian Europe provides installation assistance, spare parts, and technical training directly from Italy.
Browse the complete range of Chinese robots in our Chinese Robots category or explore the full Large Payload lineup.
