AIR25-1700
Description
Product description – AIR25-1700

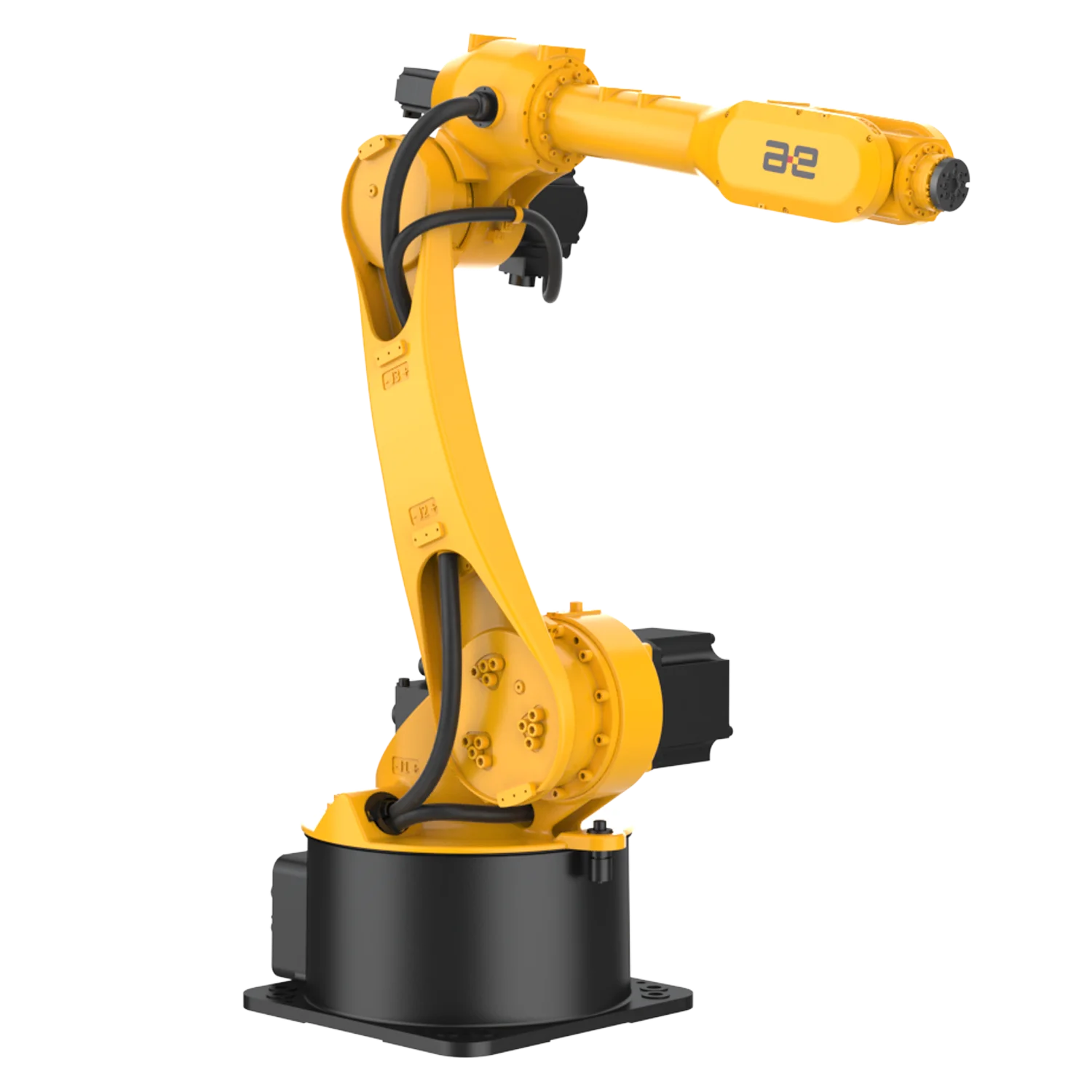

The Peitian AIR25-1700 is a 6-axis Chinese industrial robot with a 25 kg payload and a 1702 mm reach, engineered for superior speed and precision across a wide range of applications including loading & unloading, handling, palletizing, injection moulding, packing, dispensing and welding.
Paired with the inCube22 controller, it delivers significantly increased peak output. With an axis 6 speed of 755°/s — among the fastest in its class — and a position repeatability of ±0.03mm, it combines agility and accuracy for high-throughput production lines. Available in floor, wall and ceiling mounting configurations.
Key features:
- 6 axes | 25 kg payload | 1702 mm reach
- Position repeatability: ±0.03mm
- Axis 6 speed: 755°/s | Axis 5 speed: 465°/s
- Protection: IP54 (Wrist: IP67)
- Mounting: floor / wall / ceiling
- Operating temperature: 5–45°C
