InCube2S-6

Description

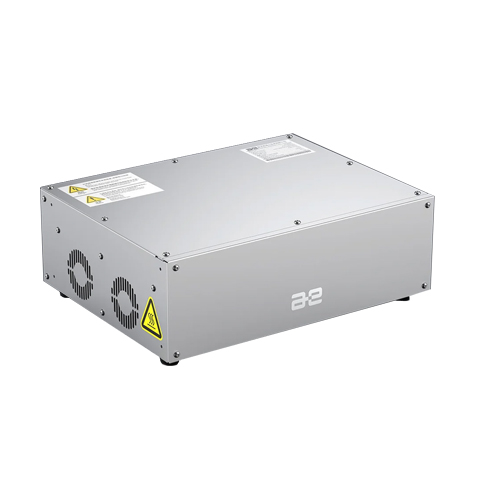

Product description – InCube2S-6

The Peitian InCube2S-6 is a compact robot controller designed for seamless integration with Chinese industrial robots up to 6 axes. Part of the award-winning InCube series, it combines a small footprint with high power density, making it ideal for space-constrained automation cells.

Equipped with Peitian’s proprietary ARCS control software, the InCube2S-6 delivers high-speed, high-precision motion control with accurate trajectory management and fast cycle execution.

Key specifications:

• Dimensions: 364 × 135 × 283 mm
• Weight: 11 kg
• Protection: IP40
• Power supply: Single-phase 220VAC
• Max. input power: 2.2 KVA
• I/O: 26 User DI (PNP & NPN), 26 User DO (NPN), 18 Safety IO
• Operating temperature: 0–45°C
